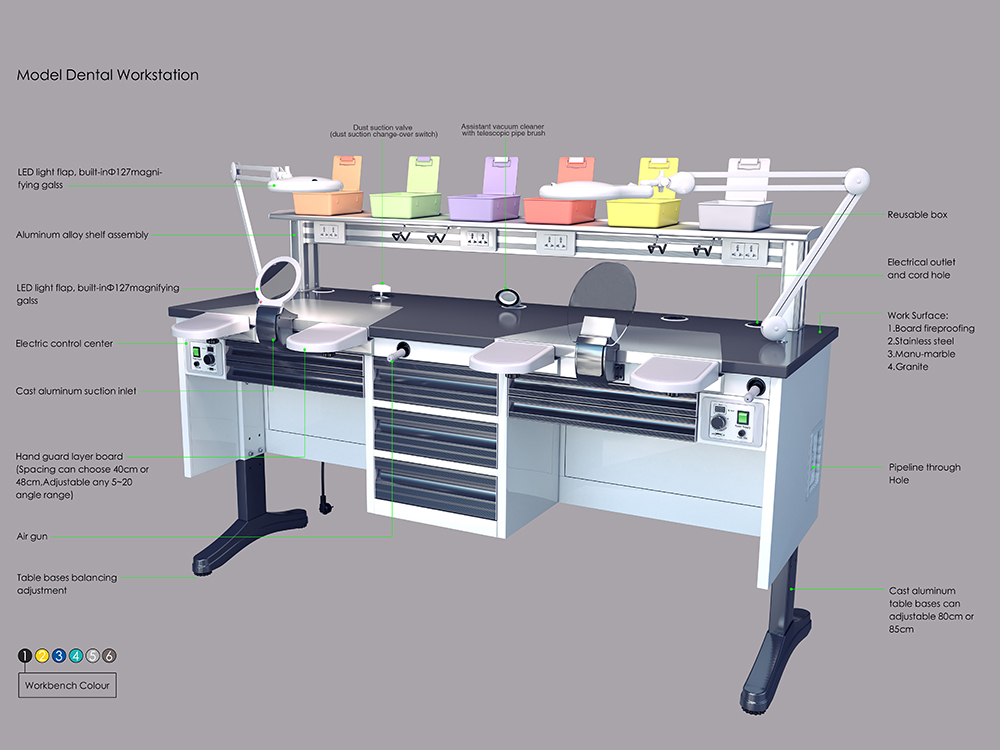

This type of Dental workstation widely adopts some famous dental technicians' advice both at home and abroad. The main material consists of cold-rolled stamping, die-casting aluminium alloy and extrusions. Through 3D modeling design, and by laser cutting machine, CNC bending machine, automatic welding machine and other modern equipment precision machining. Surface material can be made by squeezed high-density fireproof board, or stainless steel, or man-made marble. Selves on the desk are all made by aluminium alloy, which make the selves elegant and durable. The work light is combined by sun-light source and 5- inch 300-degree magnifier. Elbow guard surface is covered by elastomer material which makes the elbow more comfortable. The elbow working space can be adjusted in two levels between standard (40cm) and widen (48cm). Hand Guard Layer Board adjustable any 5-20 angle range. Self-reset air gun is well designed with good texture. The independent suction device also supports central vacuuming system which has strong power and low noise. The height of this desk can be adjusted between 80cm and 85cm. The four corners can be fine-tuned according to the ground. The delicate appearance air gun can reset automatic. The workstation configures low noise and strong suction power dust exhaust apparatus, also it support central dust collection system concentrated dust collection. Embedded integrated electrical control box is easy to fix and replace. This control box can control all of the electrical circuit, at the same time, based on this control box and from the digital window; workers can check the vacuum dust collection system of the motor run time. The standard configuration USB interface can support 2A 12V weak power. The suction nozzle assembly has two accessories can choose. One is Fan toughened glass block dust board another one is LED lamp ring (built-5 inch magnifying glass/5 inch flat lens). The workstation has a unique hidden layer, which is neat and easy to use, and can be used in the actual use of all pipelines, as well as vacuum cleaners are hidden in the sandwich. Between each workstations can connect seamlessly. There are supplementary dust collection components which are allocated randomly. The operation desk can be cleaned just by buckling the assistant suction device on the nozzle.

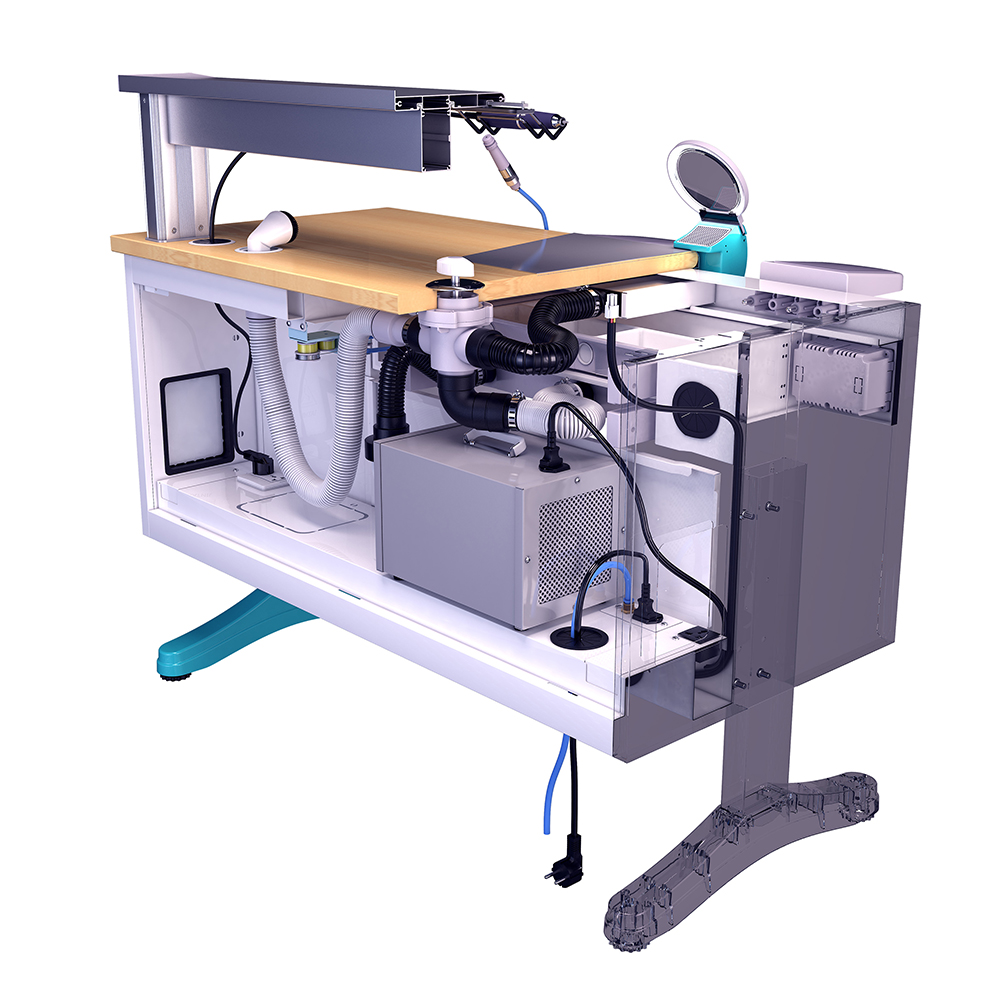

Internal structure - built in dust collector
Product Parameter
Voltage:
220V/50Hz, 110V/60Hz
Power:
500W
Air Flow:
175m3/h
Max. Vacuum:
-16KPa
Max. Noise:
<65dB
Length:
1m/1.2m/1.4m/1.6m/1.8m
Width:
60cm
Height:
80-85cm adjustable
Optional Tabletop:
Fireproofing board, artificial marble, stainless steel, black granite, oak solid wood
Tabletop Material
Board Fireproofing Table Top
Artificial Marble Table Top
Stainledd Steel Table Top
Black Granite Table Top
Popular Size And Standard Component
1M Single Technician Workstation
High density of fire prevention board *1
5 inches 500 angle magnifying glass lamp *1
Aluminum alloy shelf assemblies *1
C model drawer locker tray *1
Air gun *1
Adjustable elbow support *1 pair
Dust collection assembly(with tempering sector glass dust board) *1
LED Dust board wityh light *1
Dust collector *1
Work pans *3
Assistant dust collection *1
1.2M Single Technician Workstation
High density of fire prevention board *1
5 inches 500 angle magnifying glass lamp *1 Steel shelf assemblies *1
C model drawer locker tray *1
Air gun *1
Adjustable elbow support *1 pair
Dust collection assembly(with tempering sector glass dust board) *1
LED Dust board wityh light *1
Dust collector *1
Work pans *3
Assistant dust collection *1
1.4M Single Technician Workstation
High density of fire prevention board *1
5 inches 500 angle magnifying glass lamp *1
LED Lamp *1
Aluminum alloy shelf assemblies *1
C model drawer locker tray *1
Air gun *1
Multi-media outlet *1
Adjustable elbow support *1pair
Dust collection assembly(with tempering sector glass dust board) *1
LED Dust board wityh light *1
Dust collector *1
Work pans *3
Assistant dust collection *1
1.6M Double Technician Workstation
High density of fire prevention board *1
5 inches 500 angle magnifying glass lamp *2 Aluminum alloy shelf assemblies *1
Aluminum alloy frame assemblies *1
C model drawer locker tray *2
Air gun *2
Adjustable elbow support *2pairs
Dust collection assembly(with tempering sector glass dust board) *2
Dust collector *2
Work pans *6
Assistant dust collection *1

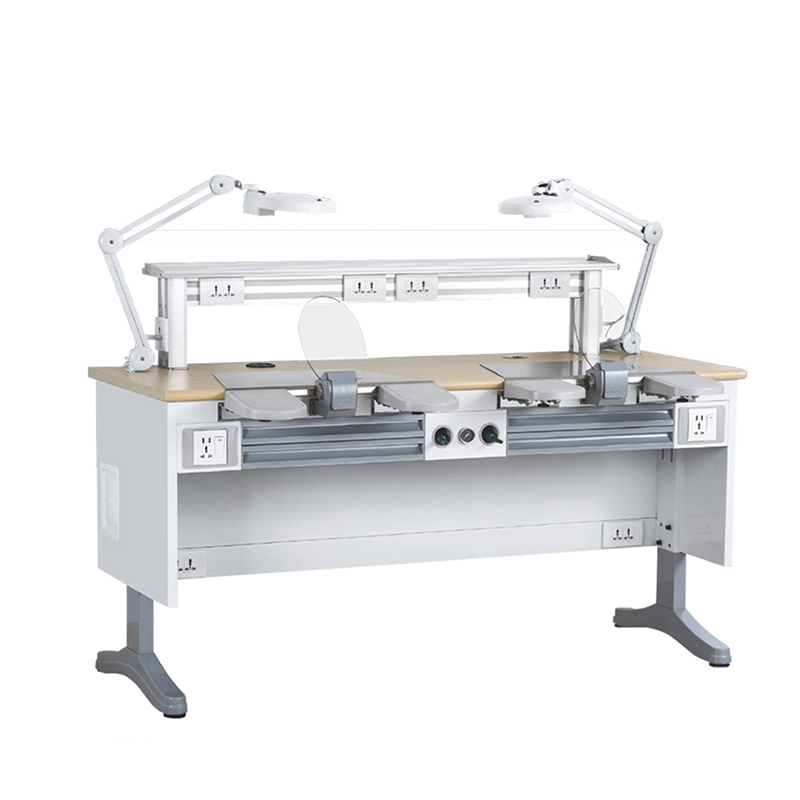

1.8M Double Technician Workstation
High density of fire prevention board *1
5 inches 500 angle magnifying glass lamp *2
Aluminum alloy shelf assemblies *1
Aluminum alloy frame assemblies *1
C model drawer locker tray *2
Air gun *2
Adjustable elbow support *2pairs
Dust collection assembly(with tempering sector glass dust board) *2
LED Dust board wityh light *2
Dust collector *2
Work pans *6
Assistant dust collection *1
Place of Origin: hubei china
Brand name: JG
model: Workstation 1.8m
Power Supply: Electric
guarantee: 1 year
after-sale service: Online technical support
Material Science: steel
quality guarantee period: 3 years
Quality certification: ce
Instrument classification: first kind
Safety standards: No
Voltage: 220V/50Hz； 110V/60Hz
Power Supply: 500W
Airflow: 175 m3 / h
maximum. Pressure: -16kba
maximum. Noise intensity: <65dB
Desktop: Steel, solid wood, marble, granite
Length: 1m/1.2m/1.4m/1.6m/1.8m
Width: 60 cm
Height: 80-85cm adjustable
packing: Wooden box
PRODUCT DESCRIPTION
Dental Laboratory Workbench
This type of Dental workstation widely adopts some famous dental technicians' advice both at home and abroad. The main material consists of cold-rolled stamping, die-casting aluminium alloy and extrusions. Through 3D modeling design, and by laser cutting machine, CNC bending machine, automatic welding machine and other modern equipment precision machining. Surface material can be made by squeezed high-density fireproof board, or stainless steel, or man-made marble. Selves on the desk are all made by aluminium alloy, which make the selves elegant and durable. The work light is combined by sun-light source and 5- inch 300-degree magnifier. Elbow guard surface is covered by elastomer material which makes the elbow more comfortable. The elbow working space can be adjusted in two levels between standard (40cm) and widen (48cm). Hand Guard Layer Board adjustable any 5-20 angle range. Self-reset air gun is well designed with good texture. The independent suction device also supports central vacuuming system which has strong power and low noise. The height of this desk can be adjusted between 80cm and 85cm. The four corners can be fine-tuned according to the ground. The delicate appearance air gun can reset automatic. The workstation configures low noise and strong suction power dust exhaust apparatus, also it support central dust collection system concentrated dust collection. Embedded integrated electrical control box is easy to fix and replace. This control box can control all of the electrical circuit, at the same time, based on this control box and from the digital window; workers can check the vacuum dust collection system of the motor run time. The standard configuration USB interface can support 2A 12V weak power. The suction nozzle assembly has two accessories can choose. One is Fan toughened glass block dust board another one is LED lamp ring (built-5 inch magnifying glass/5 inch flat lens). The workstation has a unique hidden layer, which is neat and easy to use, and can be used in the actual use of all pipelines, as well as vacuum cleaners are hidden in the sandwich. Between each workstations can connect seamlessly. There are supplementary dust collection components which are allocated randomly. The operation desk can be cleaned just by buckling the assistant suction device on the nozzle.
Internal structure - built in dust collector
Product Parameter
Voltage:
220V/50Hz, 110V/60Hz
Power:
500W
Air Flow:
175m3/h
Max. Vacuum:
-16KPa
Max. Noise:
<65dB
Length:
1m/1.2m/1.4m/1.6m/1.8m
Width:
60cm
Height:
80-85cm adjustable
Optional Tabletop:
Fireproofing board, artificial marble, stainless steel, black granite, oak solid wood
Tabletop Material
Board Fireproofing Table Top
Artificial Marble Table Top
Stainledd Steel Table Top
Black Granite Table Top
Popular Size And Standard Component
1M Single Technician Workstation
High density of fire prevention board *1
5 inches 500 angle magnifying glass lamp *1
Aluminum alloy shelf assemblies *1
C model drawer locker tray *1
Air gun *1
Adjustable elbow support *1 pair
Dust collection assembly(with tempering sector glass dust board) *1
LED Dust board wityh light *1
Dust collector *1
Work pans *3
Assistant dust collection *1
1.2M Single Technician Workstation
High density of fire prevention board *1
5 inches 500 angle magnifying glass lamp *1 Steel shelf assemblies *1
C model drawer locker tray *1
Air gun *1
Adjustable elbow support *1 pair
Dust collection assembly(with tempering sector glass dust board) *1
LED Dust board wityh light *1
Dust collector *1
Work pans *3
Assistant dust collection *1
1.4M Single Technician Workstation
High density of fire prevention board *1
5 inches 500 angle magnifying glass lamp *1
LED Lamp *1
Aluminum alloy shelf assemblies *1
C model drawer locker tray *1
Air gun *1
Multi-media outlet *1
Adjustable elbow support *1pair
Dust collection assembly(with tempering sector glass dust board) *1
LED Dust board wityh light *1
Dust collector *1
Work pans *3
Assistant dust collection *1
1.6M Double Technician Workstation
High density of fire prevention board *1
5 inches 500 angle magnifying glass lamp *2 Aluminum alloy shelf assemblies *1
Aluminum alloy frame assemblies *1
C model drawer locker tray *2
Air gun *2
Adjustable elbow support *2pairs
Dust collection assembly(with tempering sector glass dust board) *2
Dust collector *2
Work pans *6
Assistant dust collection *1
1.8M Double Technician Workstation
High density of fire prevention board *1
5 inches 500 angle magnifying glass lamp *2
Aluminum alloy shelf assemblies *1
Aluminum alloy frame assemblies *1
C model drawer locker tray *2
Air gun *2
Adjustable elbow support *2pairs
Dust collection assembly(with tempering sector glass dust board) *2
LED Dust board wityh light *2
Dust collector *2
Work pans *6
Assistant dust collection *1
