Dental Intraoral X-Ray USB Digital Imaging System HDR-500/600 Xray Sensor
浏览量:
1000

Dental Intraoral X-Ray USB Digital Imaging System HDR-500/600 Xray Sensor

Classification:
Machine

Since its establishment, the company has been committed to product R & D and technological innovation for a long time, and has won more than 40 national patents. It has strong technical force, advanced production technology and scientific management mode. The company has passed ISO9001 quality system certification. The company has the right of self export.

零售价
0.0
市场价
0.0
浏览量:
1000
产品编号
数量
-
+
库存:
1000
Classification
1
Introduction
Payment & Delivery
Contact

Place of Origin:                                China

Brand name:                                    Jgd dental

model:                                             HDR500A

Power Supply:                                 electric

guarantee:                                      1 year

after-sale service:                           Online technical support

Material Science:                            Plastic

quality guarantee period:              3 years

Quality certification:                       ce

Instrument classification:               second level

Safety standards:                            No,

Product Name:                               Dental digital x-ray sensor

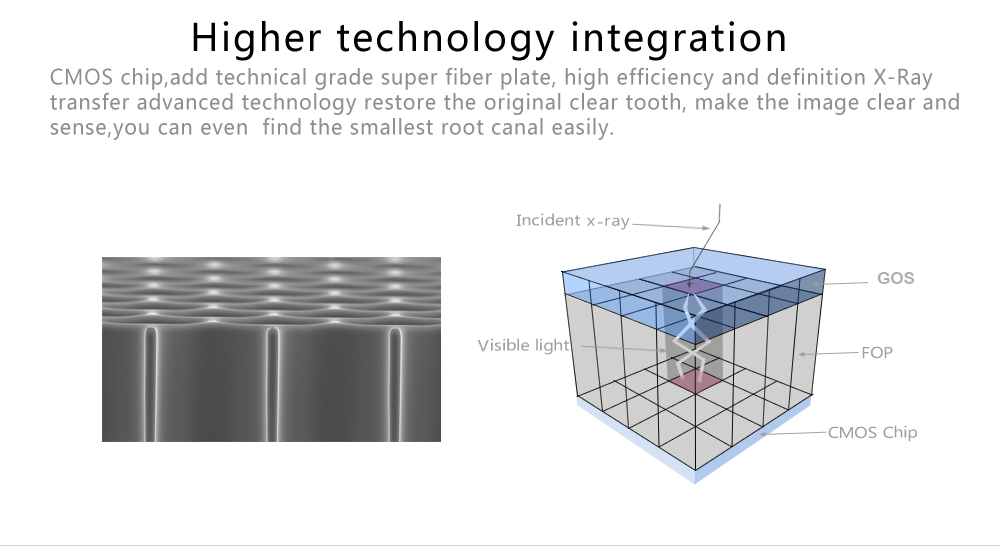

Chip type:                                       CMOS APS

Fiber optic board:                           FOP

Scintillator:                                     Gaussian

Pixel size:                                       18.5 microns

Size:                                               27.5*38.5mm

Activity area:                                 22.5*30mm

Active pixel:                                   1.9M(1600*1200)

Actual resolution:                          12-14lp/mm

Operating system:                         window









Product Details

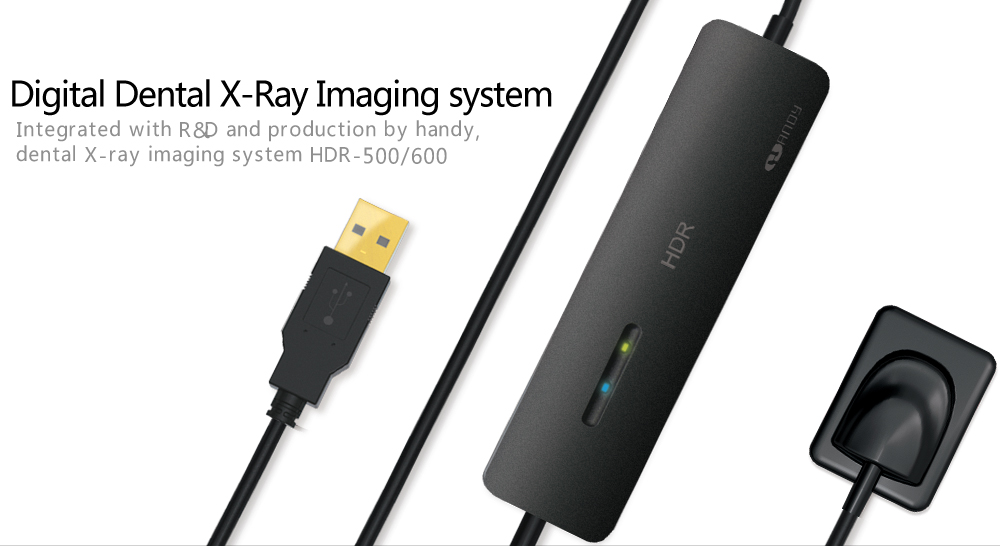

Handy Intraoral Sensor HDR-500/600

Further EscalatedPerformance
Digital DentalX-Ray imaging system

Escalation based on first genertation of HDR 100/200 sensors,
HDR500/600 have more fashionable and lighter appearance .
Moreover,Csl scintillator could be an option as per customer needs which has broader spectral dynamic range,
higher X-ray conversion efficiency and better details showing ability.

Specifications
Sensor
HDR-500
HDR-600

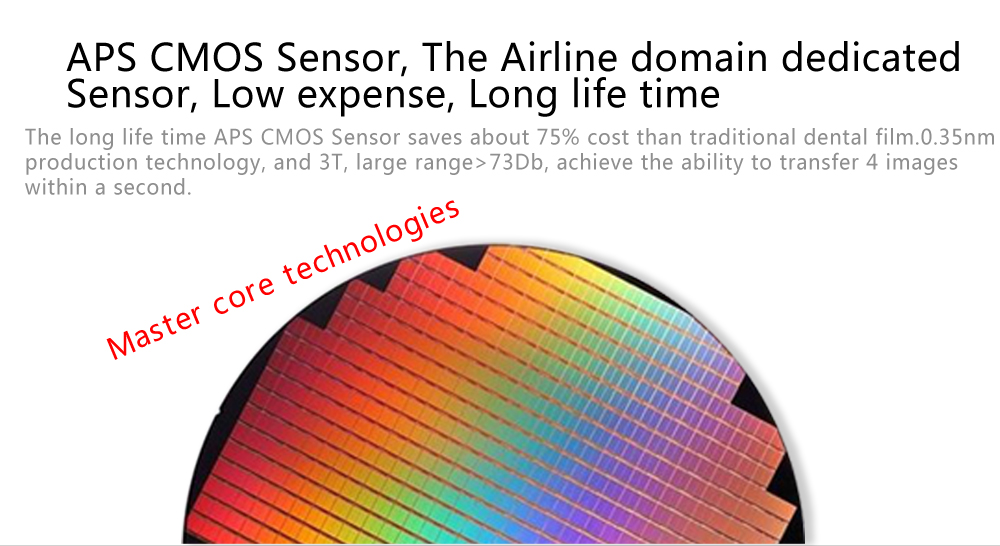

Chip Type
CMOS APS
Fiber Optical Plate
Yes
Scintillator
GOS/CsI
Dimension
27.5 x 38.5mm
32.3 x 44.3mm

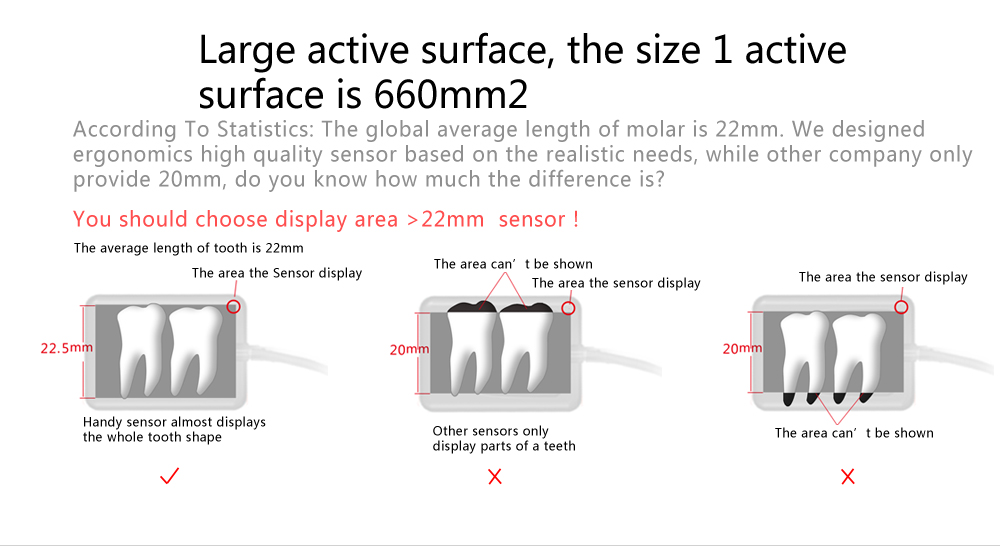

Active Area
22.5 x 30mm
27 x 36mm
675mm²
972mm²
Pixel Size
18.5μm
Active Pixels
1.9M(1600*1200)
2.7M(1920*1440)

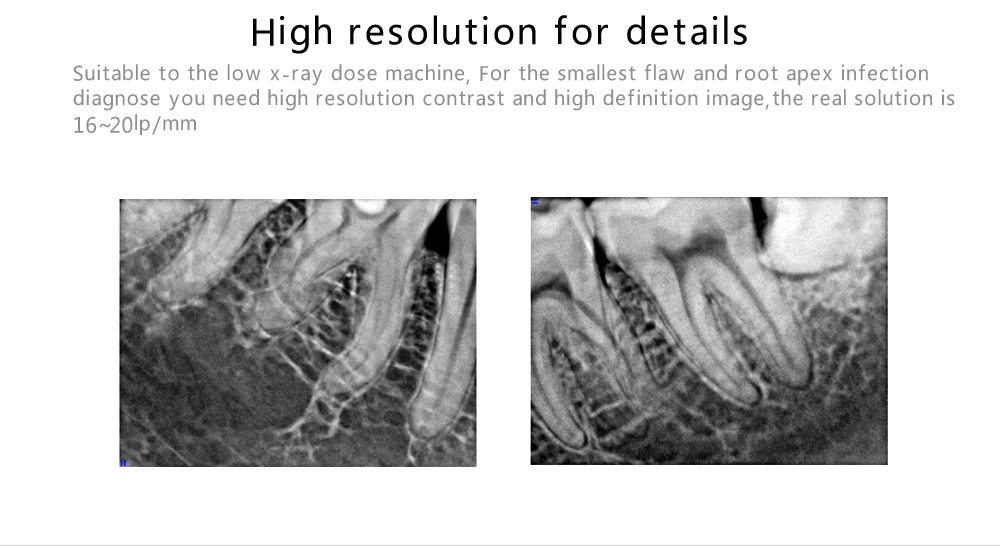

Resolution
Theoretical: 27lp/mm
Actual: 12-14lp/mm (GOS) 16-20lp/mm(CsI
Operation System
Windows2000/xp/win7/win8/win8.1/win10 (32bit&64bit)

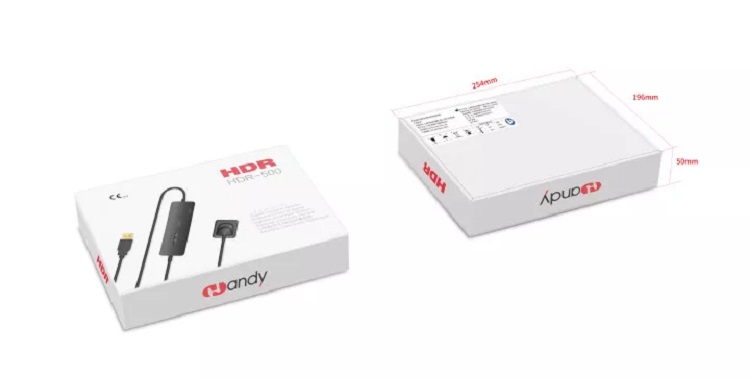

Packaging

Place of Origin:                                China

Brand name:                                    Jgd dental

model:                                             HDR500A

Power Supply:                                 electric

guarantee:                                      1 year

after-sale service:                           Online technical support

Material Science:                            Plastic

quality guarantee period:              3 years

Quality certification:                       ce

Instrument classification:               second level

Safety standards:                            No,

Product Name:                               Dental digital x-ray sensor

Chip type:                                       CMOS APS

Fiber optic board:                           FOP

Scintillator:                                     Gaussian

Pixel size:                                       18.5 microns

Size:                                               27.5*38.5mm

Activity area:                                 22.5*30mm

Active pixel:                                   1.9M(1600*1200)

Actual resolution:                          12-14lp/mm

Operating system:                         window









Product Details



Handy Intraoral Sensor HDR-500/600

Further EscalatedPerformance
Digital DentalX-Ray imaging system

Escalation based on first genertation of HDR 100/200 sensors,
HDR500/600 have more fashionable and lighter appearance .
Moreover,Csl scintillator could be an option as per customer needs which has broader spectral dynamic range,
higher X-ray conversion efficiency and better details showing ability.

Specifications
Sensor
HDR-500
HDR-600
Chip Type
CMOS APS
Fiber Optical Plate
Yes
Scintillator
GOS/CsI
Dimension
27.5 x 38.5mm
32.3 x 44.3mm
Active Area
22.5 x 30mm
27 x 36mm
675mm²
972mm²
Pixel Size
18.5μm
Active Pixels
1.9M(1600*1200)
2.7M(1920*1440)
Resolution
Theoretical: 27lp/mm
Actual: 12-14lp/mm (GOS) 16-20lp/mm(CsI
Operation System
Windows2000/xp/win7/win8/win8.1/win10 (32bit&64bit)
Packaging
