Place of Origin:: China

Brand Name:: JGDental

Model Number:: Titanium Disc

Power Source:: Machinery

Warranty:: 1 Year

After-sale Service:: Online technical support

Material:: Titanium

Shelf Life:: 3 years

Quality Certification:: ce

Instrument classification:: Class I

Safety standard:: None

Use:: for dental restorations, CAD/CAM, modeling

Diameter:: 98mm

Thickness:: 10/12/14/16/18/20/22/25mm

Density:: 4.51g/cm3

Melting temperature:

1667℃

Products Description

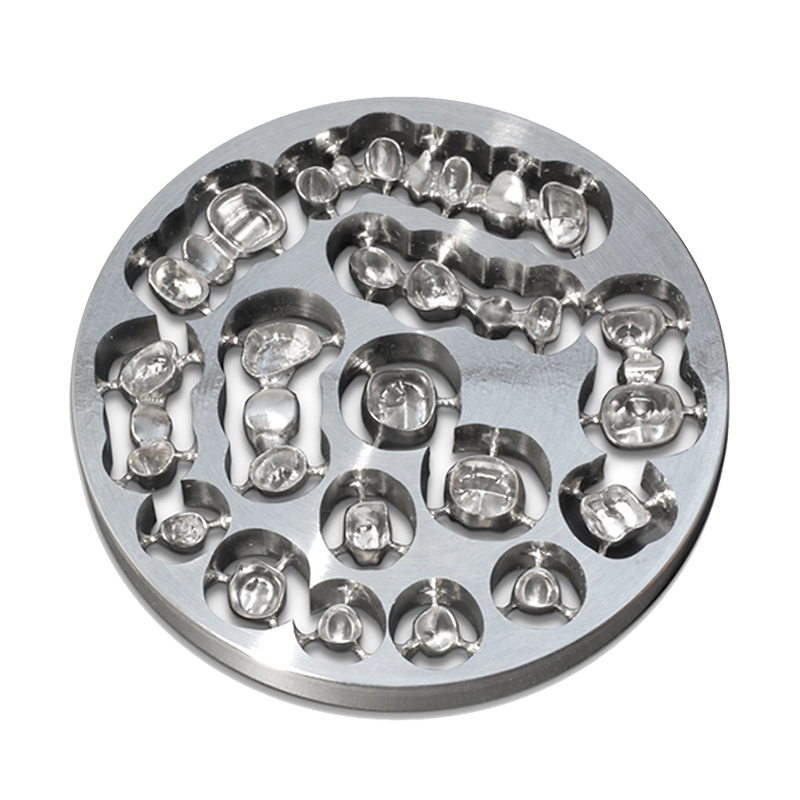

Dental Titanium Metal Milling Blank Disc Blocks for CAD CAM System

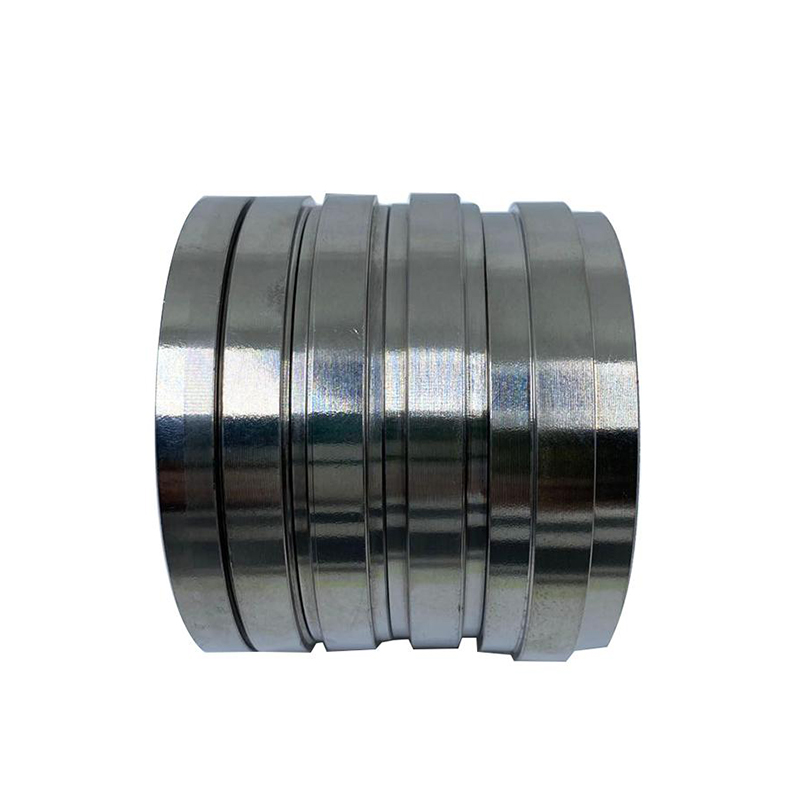

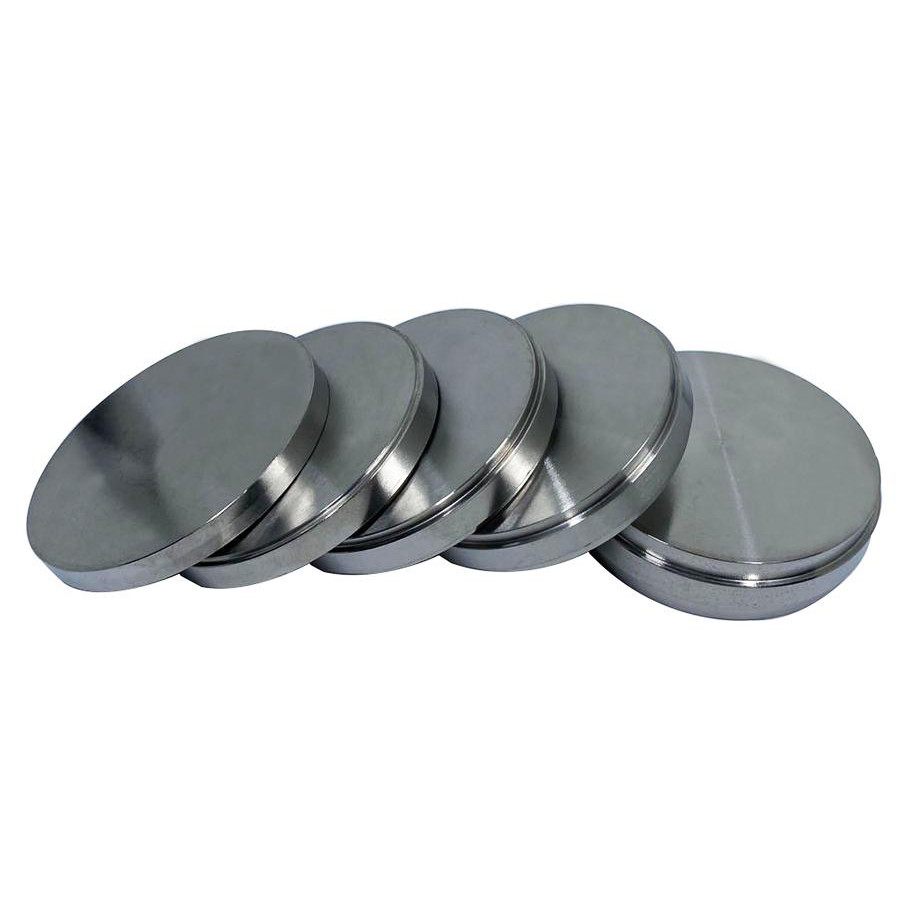

High purity titanium Grade 2 & Grade 5 milling blank, especially designed for the use of CAD CAM milling systems. This industrially manufactured material ensures consistent quality and is suitable for crowns and bridges in the anterior and posterior regions. Any type of veneering ceramics which are suitable for titanium can be used. Sizes available for Round OD98mm discs with or without step for height between 10mm and 25mm.

Advantage:
It is more bio-safe, better casting property and excellent polishing property.

Technical Data:

Grade 2		Grade 5
Composition	Specifications	Composition	Specifications
Titan >99%	Density: 4.51g/cm3	Titan 90%	Density: 4.43g/cm3
Fe 0.30%	Vickers Hardness : 145MPa	Fe 0.13%	Vickers Hardness : 353MPa
C 0.01%	E-module: 105kN/mm2	Al 6.0%	E-module: 114kN/mm2
N 0.04%	Yield Strength: 275MPa	V 4.1%	Yield Strength: 836MPa
O 0.35%	Tensile Strength: 345MPa	O 0.1%	Tensile Strength: 897MPa
H 0.01%	Elongation at break: 20%	H 0.001%	Elongation at break: 12%
	CTE: 9.6*10-6/m Celsius	N 0.01%	CTE: 10.3μm /K 25-500° C
		C 0.03%

Place of Origin:: China

Brand Name:: JGDental

Model Number:: Titanium Disc

Power Source:: Machinery

Warranty:: 1 Year

After-sale Service:: Online technical support

Material:: Titanium

Shelf Life:: 3 years

Quality Certification:: ce

Instrument classification:: Class I

Safety standard:: None

Use:: for dental restorations, CAD/CAM, modeling

Diameter:: 98mm

Thickness:: 10/12/14/16/18/20/22/25mm

Density:: 4.51g/cm3

Melting temperature:

1667℃

Products Description

Dental Titanium Metal Milling Blank Disc Blocks for CAD CAM System

Advantage:
It is more bio-safe, better casting property and excellent polishing property.

Technical Data:

Grade 2		Grade 5
Composition	Specifications	Composition	Specifications
Titan >99%	Density: 4.51g/cm3	Titan 90%	Density: 4.43g/cm3
Fe 0.30%	Vickers Hardness : 145MPa	Fe 0.13%	Vickers Hardness : 353MPa
C 0.01%	E-module: 105kN/mm2	Al 6.0%	E-module: 114kN/mm2
N 0.04%	Yield Strength: 275MPa	V 4.1%	Yield Strength: 836MPa
O 0.35%	Tensile Strength: 345MPa	O 0.1%	Tensile Strength: 897MPa
H 0.01%	Elongation at break: 20%	H 0.001%	Elongation at break: 12%
	CTE: 9.6*10-6/m Celsius	N 0.01%	CTE: 10.3μm /K 25-500° C
		C 0.03%
