Dental Implant Guide Drill Pin Kit Bone Trimmer and Collector Tools Color Guided Distance Measuring Instrument
浏览量:
1000

Dental Implant Guide Drill Pin Kit Bone Trimmer and Collector Tools Color Guided Distance Measuring Instrument

Classification:
lmplant Guide Kit

Since its establishment, the company has been committed to product R & D and technological innovation for a long time, and has won more than 40 national patents. It has strong technical force, advanced production technology and scientific management mode. The company has passed ISO9001 quality system certification. The company has the right of self export.

零售价
0.0
市场价
0.0
浏览量:
1000
产品编号
数量
-
+
库存:
10000
Classification
1
Introduction
Payment & Delivery
Contact
Place of Origin:

South Korea

Brand Name:

JG Dental

Model Number:

Guide Collector

Power Source:

Machinery

Warranty:

1 Year

After-sale Service:

Online technical support

Material:

Steel

Shelf Life:

3 years

Quality Certification:

ce

Instrument classification:

Class I

Safety standard:

None

Name:

Dental Implant Guide Kit





Products Description

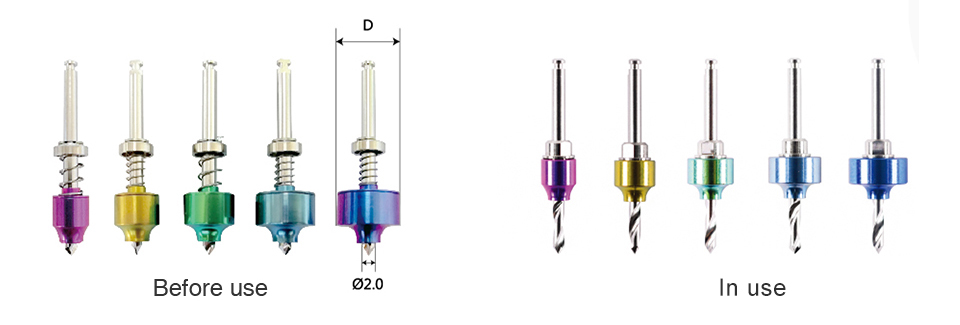

Guide Drill
Model
Diameter (D)
Color
GD 6.0
φ 6.0 mm
Purple
GD 7.0
φ 7.0 mm
Gold
GD 8.0
φ 8.0 mm
Green
GD 9.0
φ 9.0 mm
Light blue
GD 10.0
φ 10.0 mm
Dark blue

Feature

1. While drilling holes, autologous bone can be collected for autologous bone transplantation. 2. It is convenient to confirm the distance between two implants when two implants are implanted at the same time, so as to reduce the mistakes in the operation. 3. Make it easy to determine the position of implant socket.

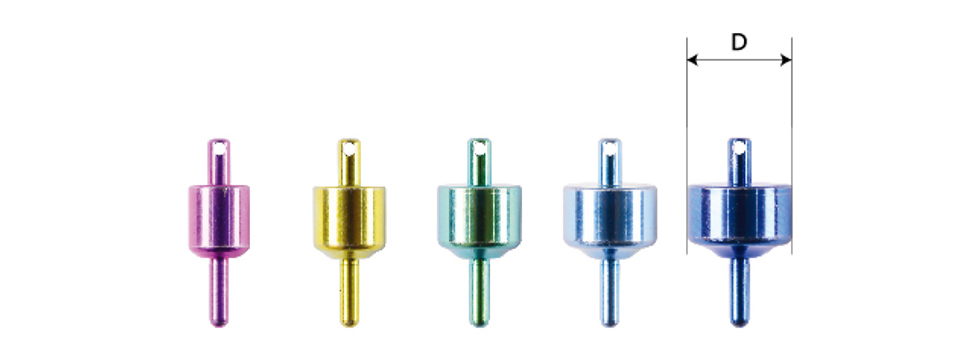

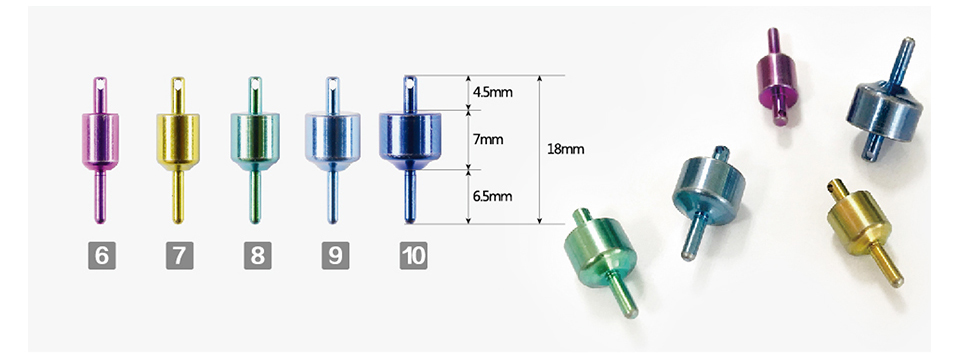

Guide Pin
Model
Diameter (D)
Color
GP 6.0
φ 6.0 mm
Purple
GP 7.0
φ 7.0 mm
Gold
GP 8.0
φ 8.0 mm
Green
GP 9.0
φ 9.0 mm
Light blue
GP 10.0
φ 10.0 mm
Dark blue

Feature

1. Fix a single positioning rod to confirm the position of implant socket. 2. When two or more implants are implanted at the same time, the operation is more convenient.

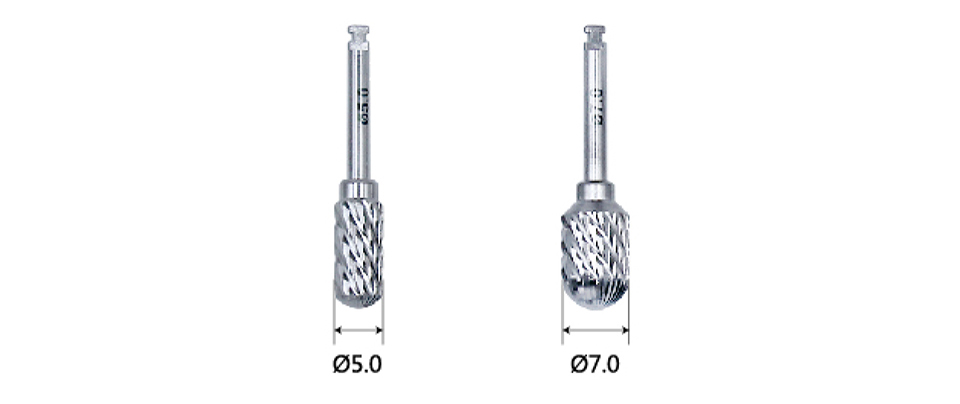

Bone Trimmer
Model
Diameter (D)
Color
BT 5.0
φ 5.0 mm
Silver
BT 7.0
φ 7.0 mm
Silver


Recommended speed
Bone Trimming: 800-1200rpm

Feature

1. After cutting the ridge with insufficient width horizontally, the position of the implant socket can be marked on the repaired alveolar bone plane. 2. After the extraction of residual teeth, it can effectively remove the residual bone and facilitate the formation of implant position.

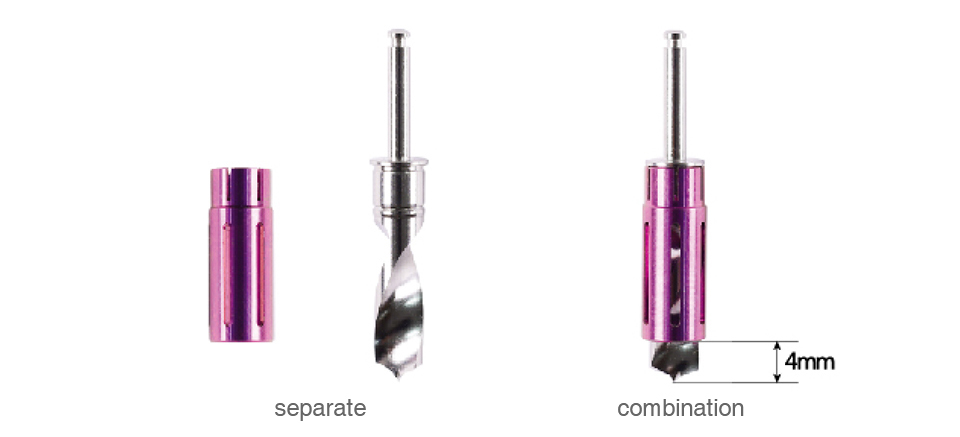

Bone Collector
Model
Diameter (D)
Color
BC 4.0 (optional)
φ 4.0 mm
Purple + Silver
BC 5.0
φ 5.0 mm
Purple + Silver

Feature
1. The autogenous bone collected during drilling can be used for bone transplantation, so as to avoid additional autogenous bone collection and the use of artificial bone powder. 2. Reduce the operation steps and shorten the operation time.

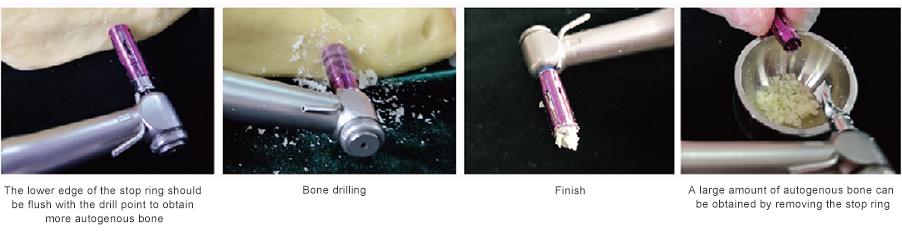

Bone collecting process
※ Note:
This product can only be used in dental surgery, not in other operations. Please use it after sterilization and store it in a dry environment at room temperature. When drilling, please use water to cool down, otherwise it will cause bone heating, then you have to drill the hole again with a larger drilling bit, so as to completely remove the heated bone. Please don't use the product in case of deformation, corrosion and tight connection between parts.

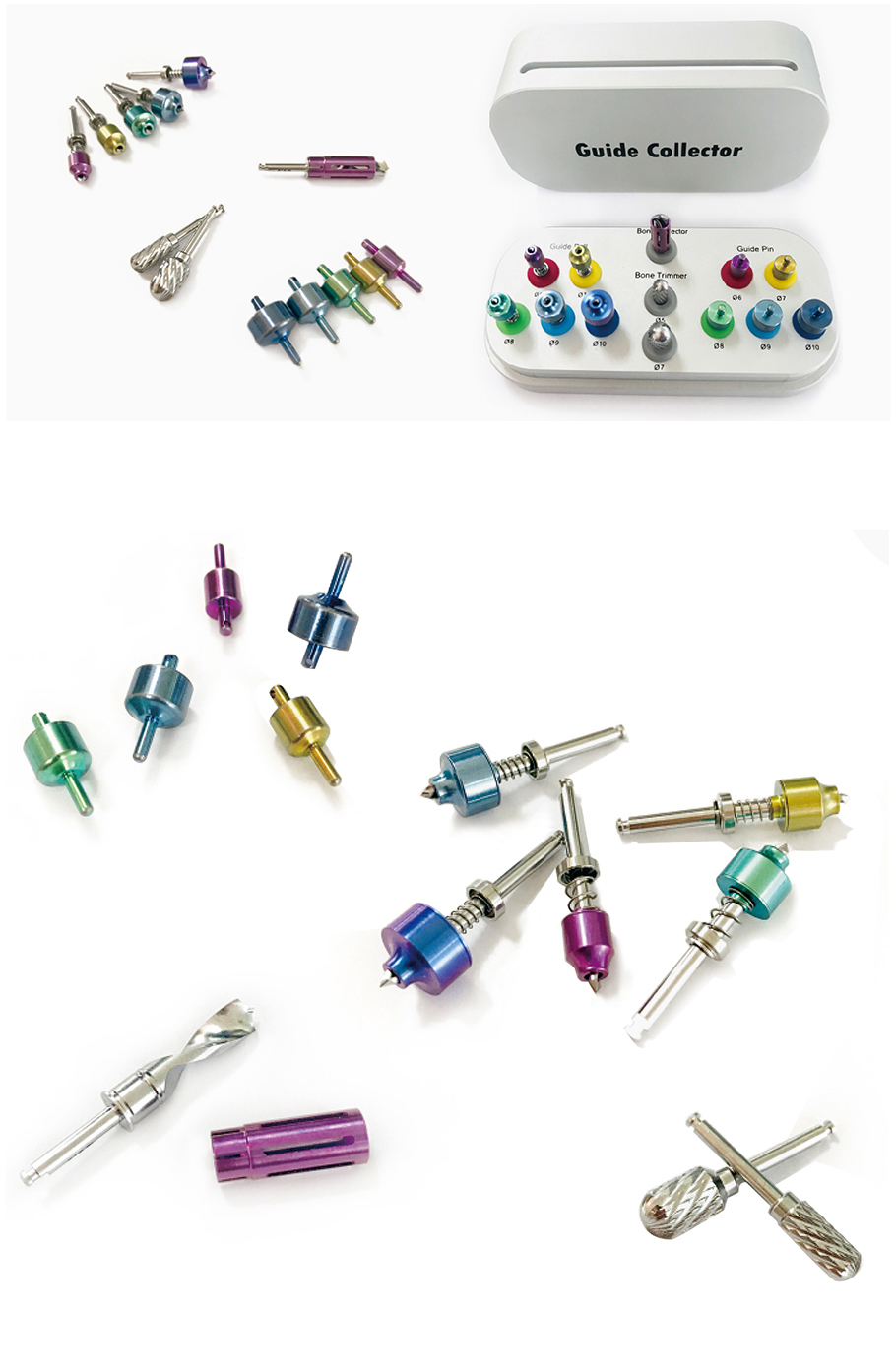

Guide Collector Kit

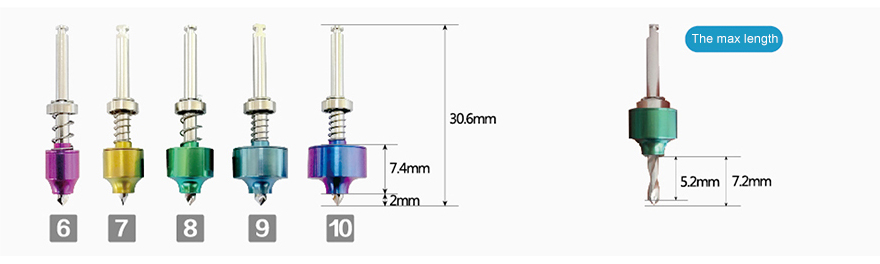

Guide Drill
Sleeve diameter 6/7/8/9/10 mm ※ Drill tips diameter 2.0mm

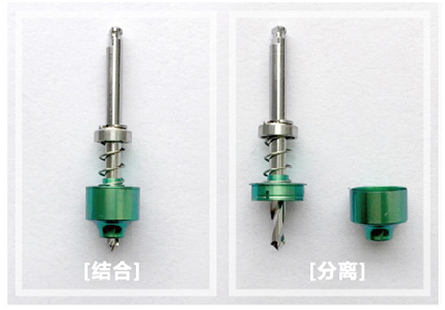

Detachable guide drill

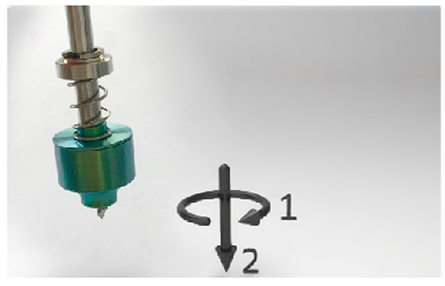

After use, separate the guide drill according to the picture on the left and clean it with ultrasonic cleaning machine. Use three fingers to hold the drill. It's easy to separate.

Operation method

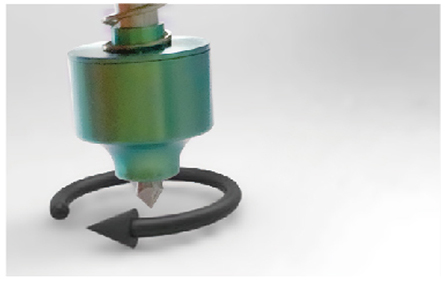

If the bit starts to run after contacting the alveolar bone, it is easy to slide. In order to prevent sliding, the best rotation speed (1000-1200rmp) should be reached before contacting the alveolar bone.

Rotation speed & water cooling

For preliminary drilling and autogenous bone collection, 1000-1200rpm should be selected and cooled with water. Water cooling can avoid bone heating, but the amount of bone collected may be reduced.

Selection of diameter
If the unsuitable guide drill (8mm) is selected, it will be stuck by the adjacent teeth.

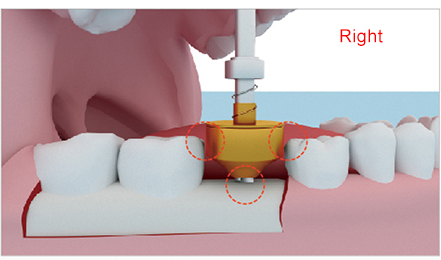

Use a suitable guide drill (7 mm) to contact the alveolar bone.

Operation method

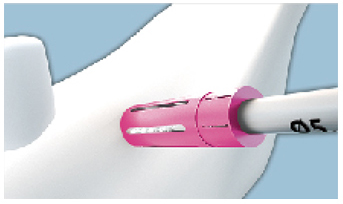

When drilling, holding the handpiece with the right hand and stabilizing the head with the left hand can prevent the position deviation caused by the vibration of the handpiece. ※Left handed people use it the opposite way

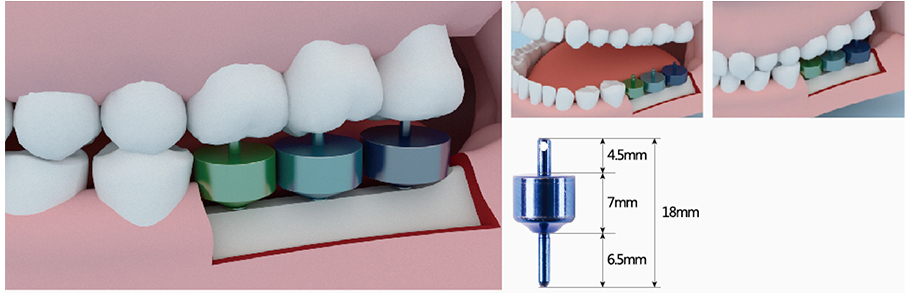

Guide Pin
Diameter 6/7/8/9/10 mm

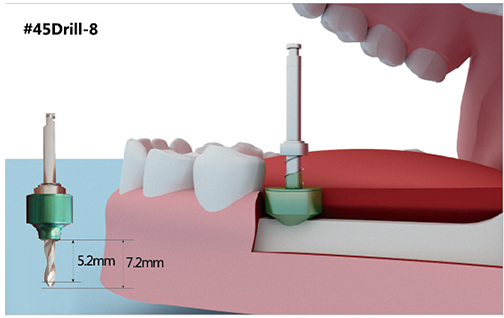

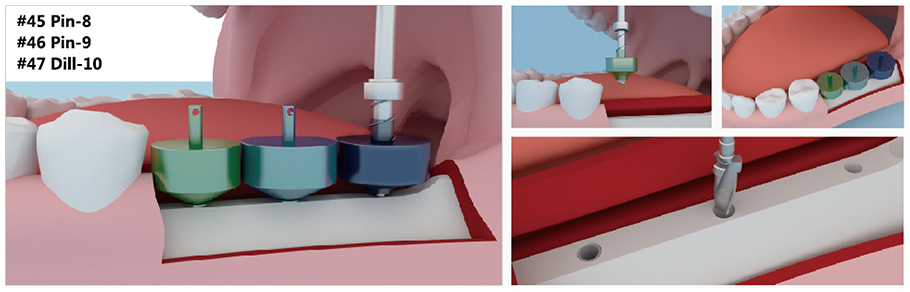

Use No.8 guide drill (GEM green) to determine the position of #45. The maximum length of the drill is 7.2mm, which can be used as a reference, to determine the depth of the hole. Because the positioning guide drill can collect the autogenous bone while drilling, the collector of the drill body can be separated to collect the autogenous bone when necessary.

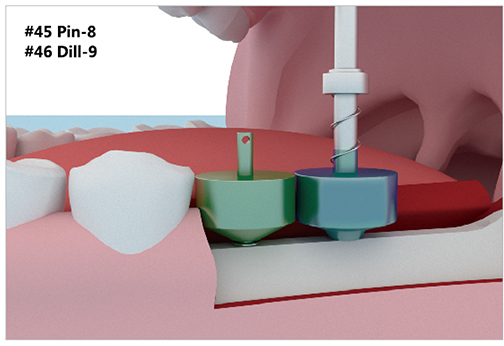

Insert the No. 8 guide pin at #45. Now the No. 8 guide pin represents the second premolar. In order to find out the position of #46, use No. 9 guide drill.
The second premolar and the first molar were identified by inserting No. 8 and No. 9 guide pins at #45 and #46 positions.
In order to determine the correct position of #47, No. 10 guide drill should be used, it should be parallel to the adjacent guide pin.
It is important to have good contact with the adjacent guide pin for positioning.
The #45 #46 #47 position and the corresponding maxillary teeth bite the positioning rod, which can determine the
occlusal point and facilitate the accurate repair in the later stage.
After drilling, implant.
